Structural Steel fabrication and installation
Wood Lane underground station for London Underground in partnership with Westfield
Architectural metalworks, platform seating, John Desmond Ltd
Main contractor: Costain
Architect: Ian Ritchie architects
Principal engineer: Waterman Civils
Tubular, Structural and Architectural steelwork
John Desmond Ltd offer structural steel design working closely with architects and designers.
This includes:-
- Balconies
- Canopies
- Porte cocheres
- Staircases, handrails and balustrades
- Ladders and catwalks
- Metal decking and walkways
- Floor build-up, raised floors and mezzanines
- Roofs
- Frameworks for low rise buildings and home extensions
- Frameworks for medium rise buildings
- Bracketry for services and fixings
Steelwork finishes
Structural steelwork is available in the following finishes:-
- Shot- blasted
- Galvanised
- Powder coated
- Intumescent coatings
Structural steelwork standards
UKCA (UK Conformity Assessed) / CE marked to Execution Class 2.
Structural steelwork services
Pre-contract involvement and advice.
The value of what we do is enhanced by the fact that we aim to be involved in a project at an early a stage as possible. This means that potential issues can be resolved even as early as the pre-design stage.
Measured Surveys
John Desmond Ltd offers a full on-site survey including measuring which forms the basis for assessing the steelwork requirements and the provision of initial advice on your project.
Point Cloud Surveys
As a modern-day alternative to manual measuring we provide 3D laser scanning, known as a Point Cloud Survey. This method of creating internal and external images which comprise all the critical measurements and data needed to create accurate designs and suitable steelwork structures.
Autodesk Advance Steel Modelling and BIM
All steel sections are 3D-modelled in advance so that they are then cut precisely and without waste. When the sections arrive on site they can then be readily and accurately installed.
Installation
John Desmond Ltd structural steel workers are UKAS-accredited welders.
Cranage and delivery
Cranage and delivery included within our standard service or delivery only if required
Contact Alex Pashouros, Project Manager, to discuss your requirements on 0203 325 9365 or email [email protected]
A selection of projects

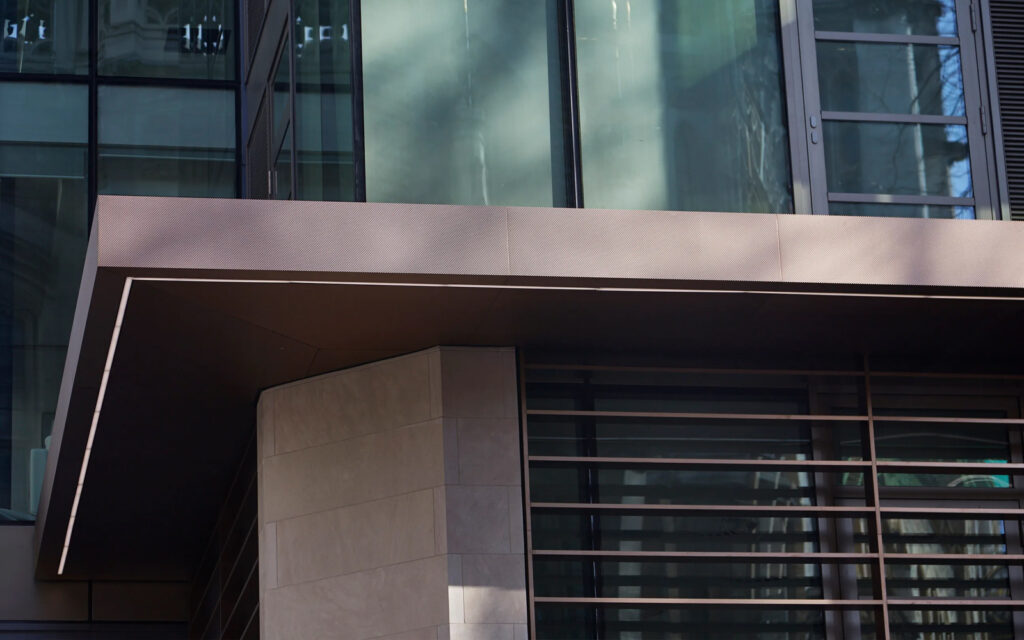

Office building,15 Fetter Lane, EC4A, London.
Architects: McBains Cooper
Client: British Steel Pension Fund Trustees Ltd
Fit-out: Nucom Interiors
PVD stainless steel & fabrication: John Desmond Ltd
John Desmond Ltd fabricated and installed the brise soleil, tapered column and canopy in Chocolate PVD stainless steel which is V-Grooved and folded to appear as solid bronze.

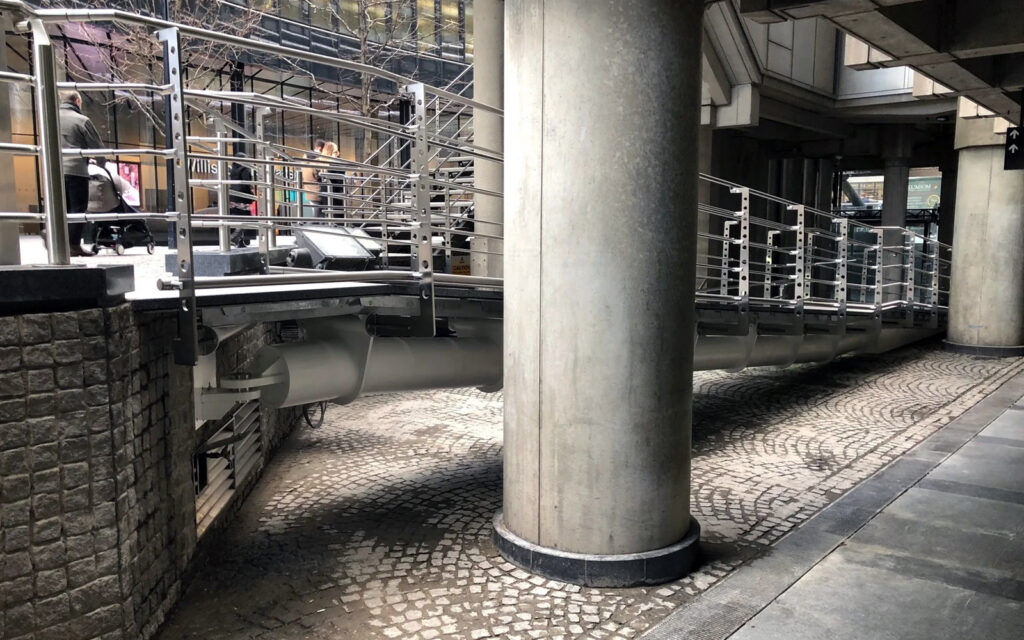

LLoyds Building, 1 Lime Street, London EC3M 7HA
Access Ramp.
Architects: Rogers Stirk Harbour and Partners
The ramp, leading from Leadenhall Street was part of the upgrading of the Lloyds Building to provide increased levels of access to the building.

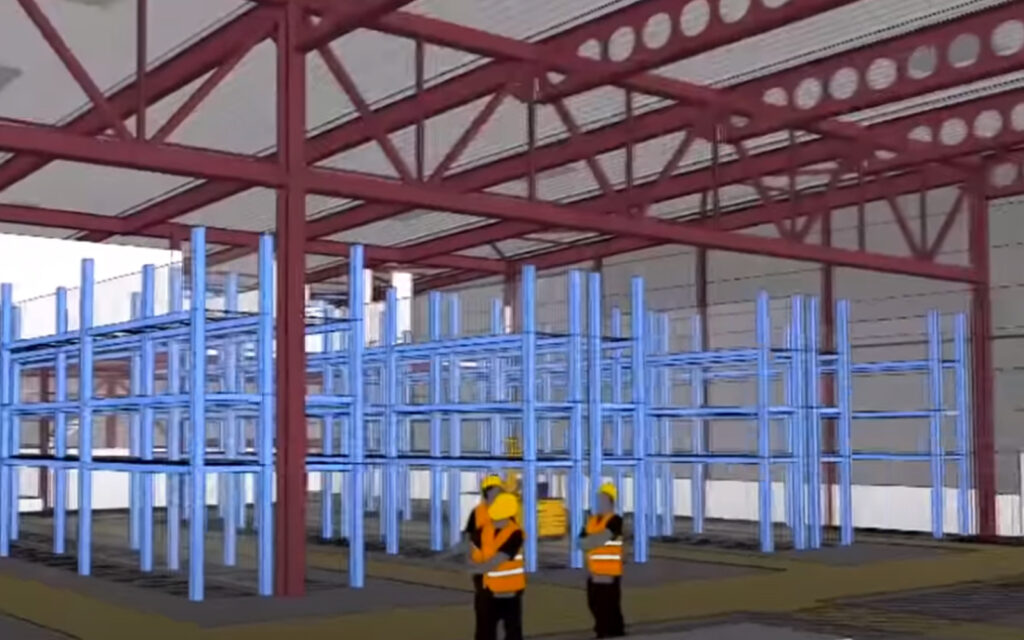

Premia Cargo Handling
Heathrow Airport, Sealand Rd, Longford, Hounslow TW6 3AQ
Client: IAG (International Airlines Group)
Main Contractor: Morgan Sindall
Structural Steel: John Desmond Ltd
John Desmond Ltd fabricated and installed the vertical and horizontal cross beam supports in powder-coated steel.

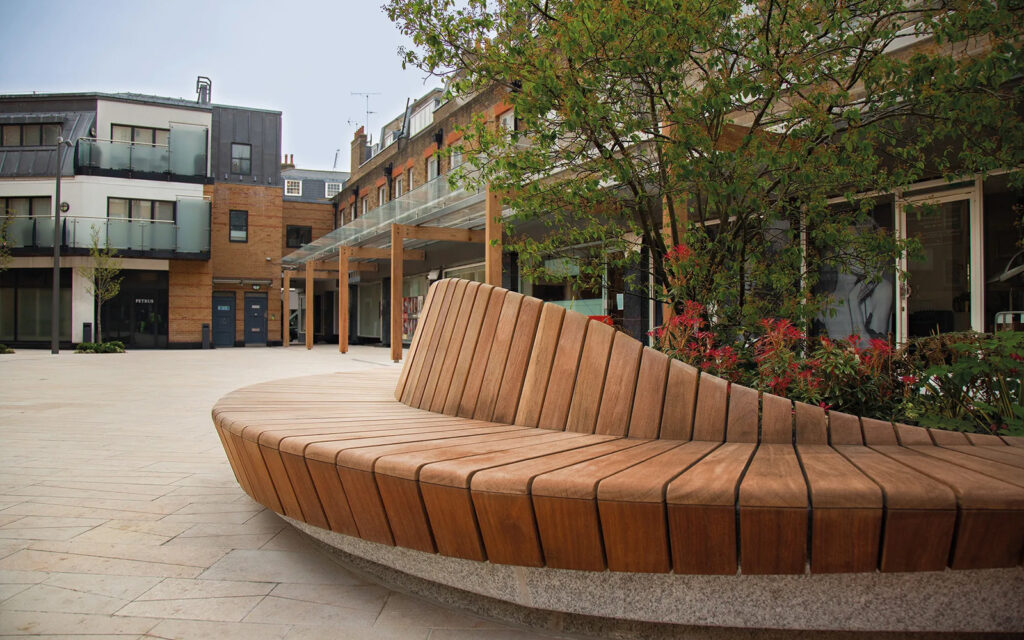

Halkin Arcade, 19 Motcomb St, London SW1X 8LB
Main Contractor: F.M.Conway
Canopy supports and bench seating: Woodscape Ltd
Structural Steelwork: John Desmond Ltd
Working with Woodscape Ltd, John Desmond Ltd designed and fabricated the structural steel frames for elongated canopy running along the north-facing exterior of the retail units.
